The Autzoam AZ-1 and Suzuki Cara have a captive brake rotor design where the wheel hub has to be pulled to access your brake rotors. This is also where your wheel bearings come into play too, you might want to replace those seals and bearings while you are fiddling about in that area so you don’t have to play press out bearings twice; or maybe you are here because you damaged the bearing pressing the old one out? Either way I have you covered!
The car requires two bearings per corner for a total of eight bearings all around. Two seals are required for the rear wheels one on each side.
I believe this is also the same wheel bearings and seals for the F6A Suzuki Alto hatchback cars too. The rear set would be the front of the Alto. Unsure if the Alto’s rear are the same as the AZ-1’s front set. (May fit other cars too but please do your own part number cross reference, I only know for sure to fit the Autozam AZ-1 and Suzuki Cara.)

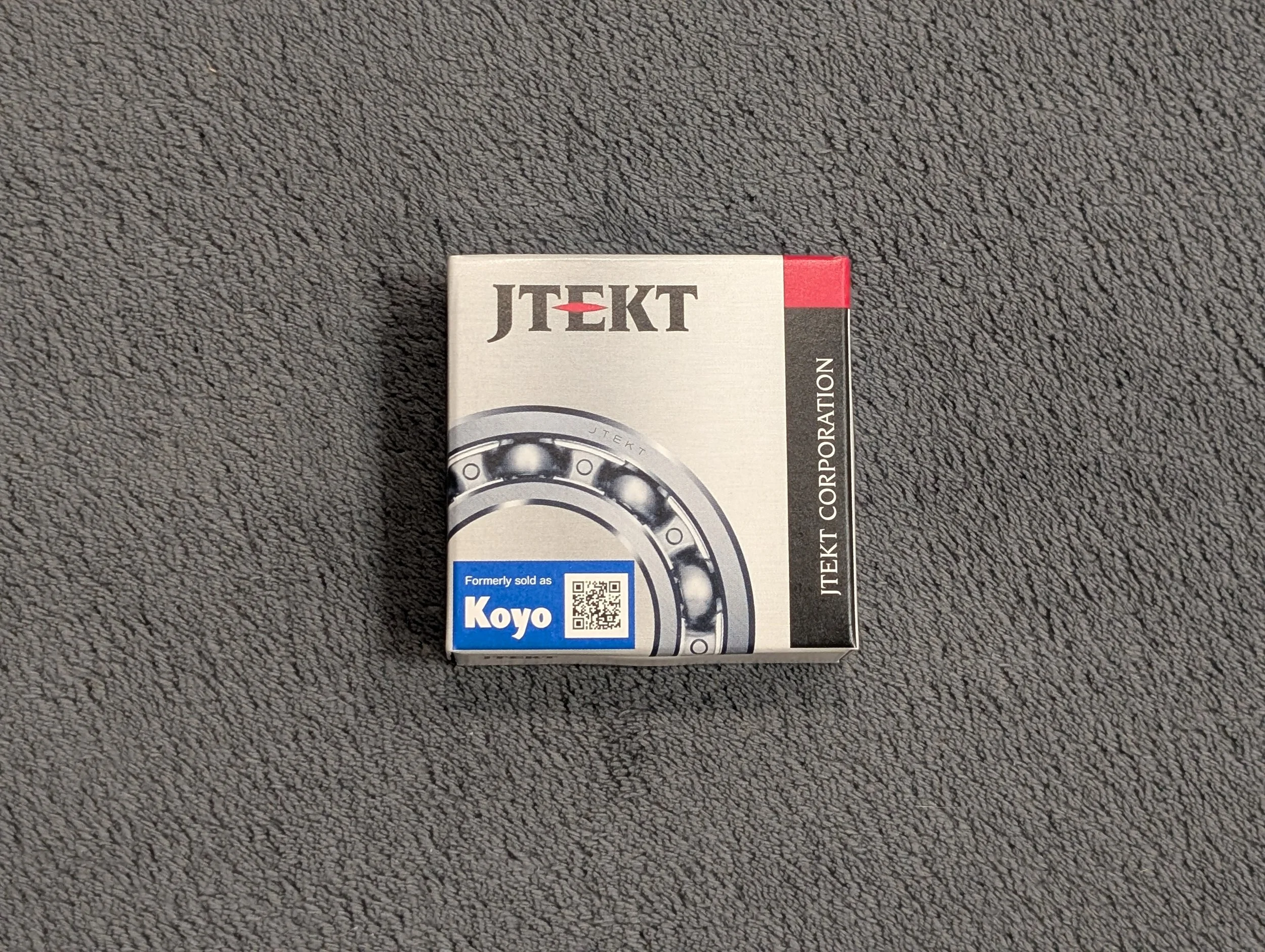

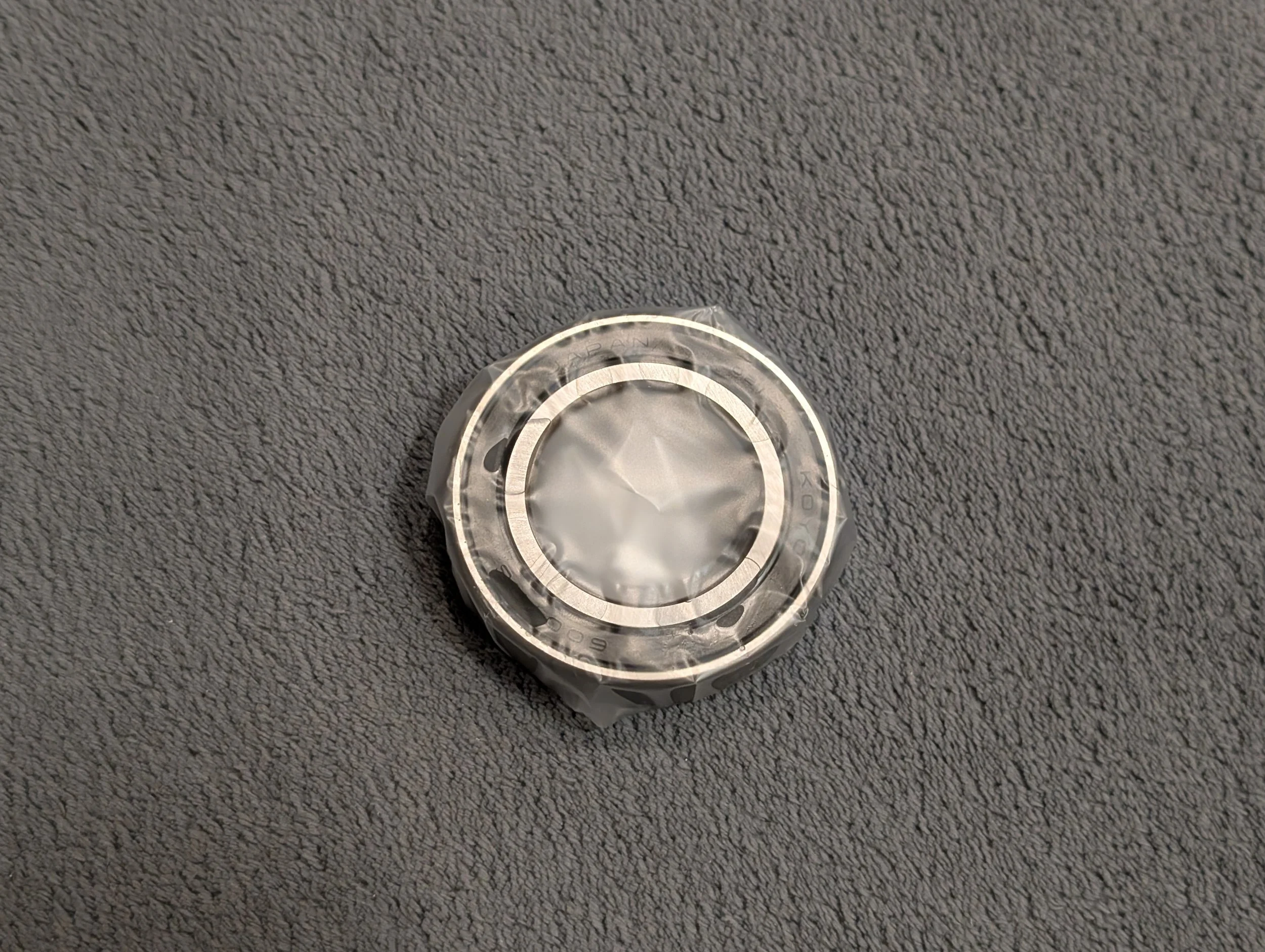

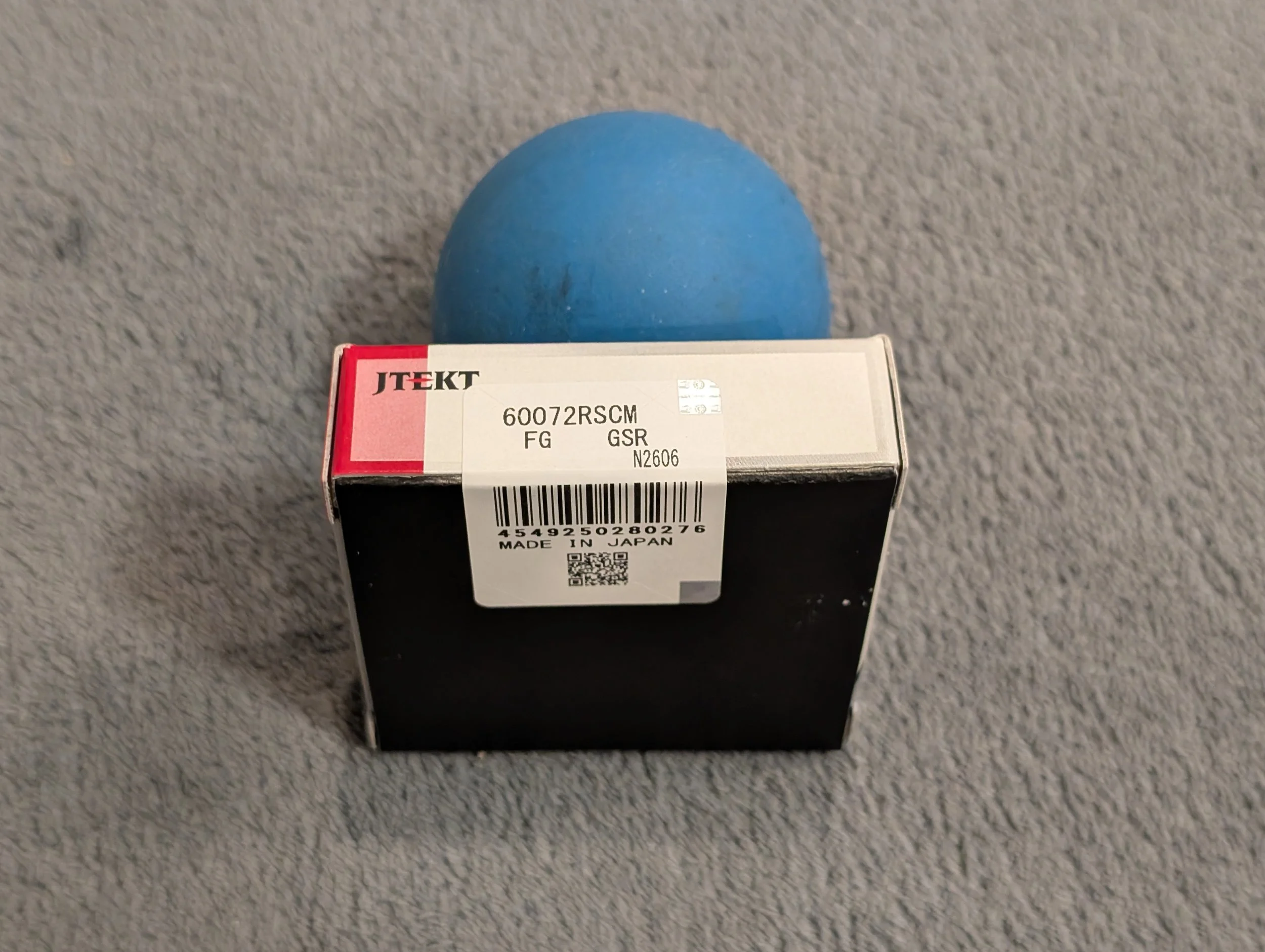

The bearings sold are high quality JTEKT brand (formerly known as Koyo) from Japan and Suzuki genuine parts seals.
Different options to choose from:
Complete bearing set with all the seals required to do one entire car
Front only (no seals required)
Rear only (2 seals included)
Suzuki part numbers:
Wheel bearing: 09262-35032, 0926235032, 09262-35032-000, 0926235032000

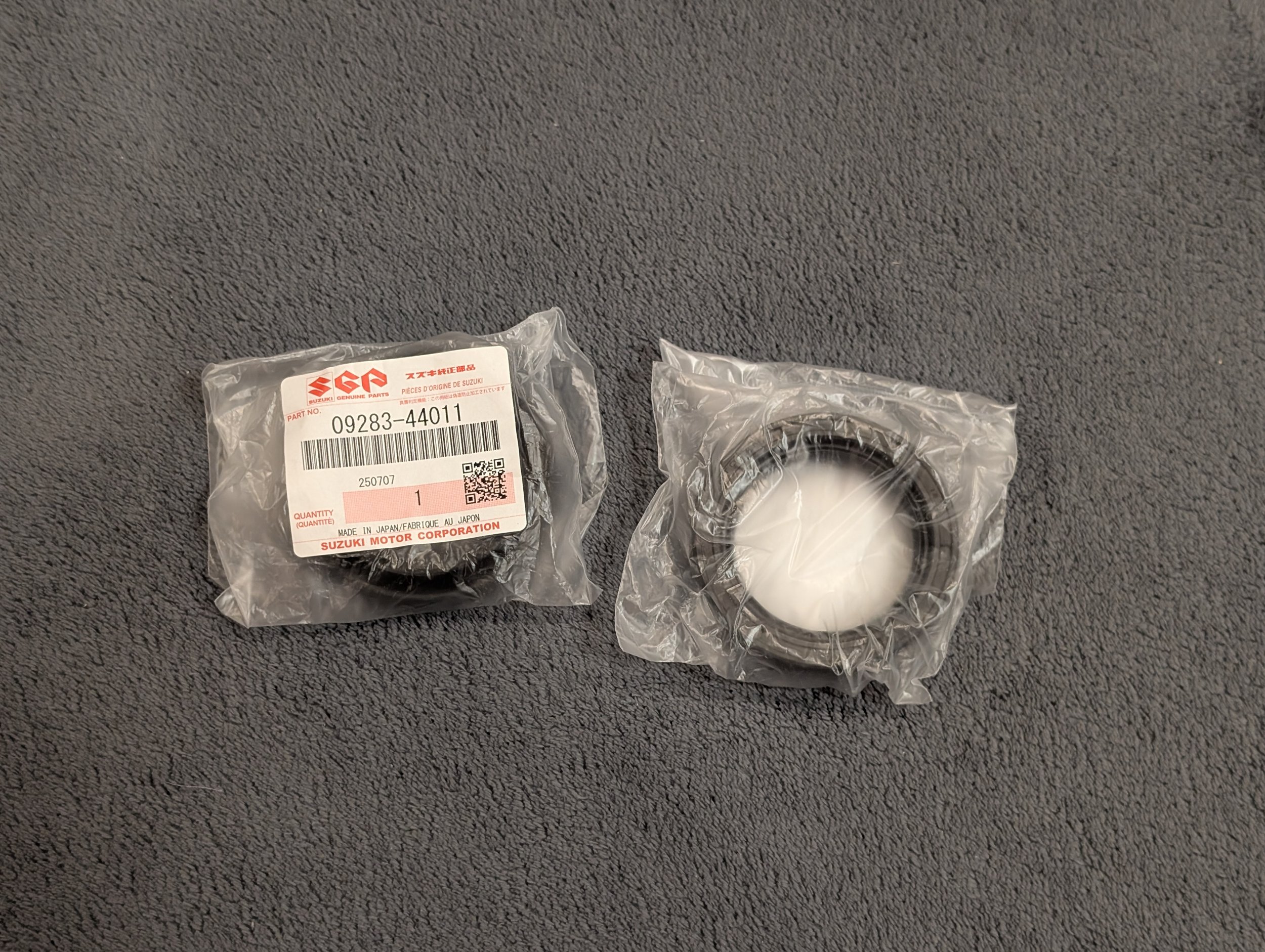

Rear bearing seal: 09283-44011, 0928344011, 09283-44011-000, 0928344011000
Mazda part numbers:
Wheel bearing: 9S9T2-35033, 9S9T235033
Rear bearing seal: 9S9V3-44008, 9S9V344008, 9S9V3-44009, 9S9V344009
